* All kits supplied with custom PCB [Printed Circuit Board], components, materials, battery, and instructions. All kits can also be supplied pre-built at NO extra cost. Each device is available housed in a heavy duty brushed aluminium case with 1/4 jack output at an additional cost of 15 euros.

//coming soon: ghost radio, video interface, images of custom neural jelly

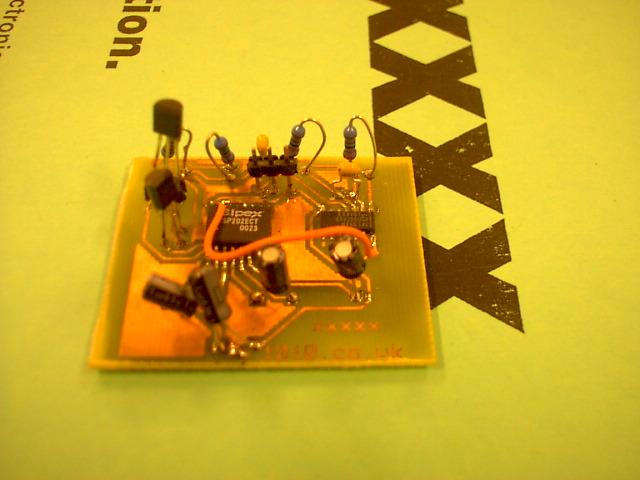

Small, portable extreme noise leberwurst unit. Avalanche transistor white noise through distortion feedback through two neurons and LED VACTROLL. High storm sound, noise. Available as pre-built and housed only.

boneberger sample: http://1010.co.uk/boneberger.mp3 or http://1010.co.uk/boneberger.ogg

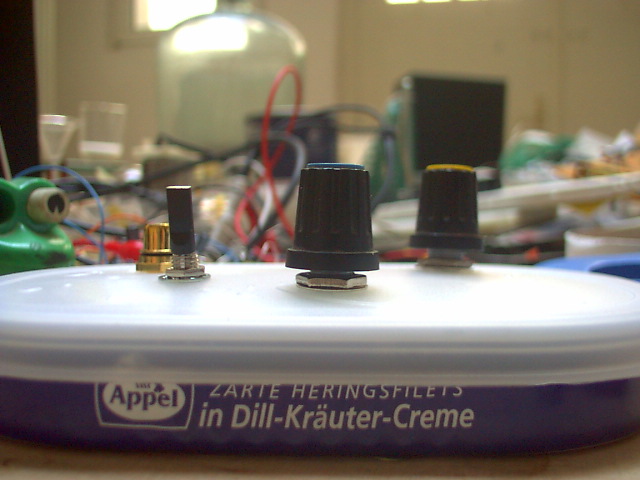

1] Fish tin sans computer sound// or jelly and krokodile clip option (please specify). (28 euros)

Versatile, portable extreme noise instrument with good range from low bass rumble, dripped pulse to squealing radio white noise static. There are three options: fish tin pre-assembled, fish tin kit (in this case with fish) for self-assembly and experimentation, and finally, for the adventurous, jelly option, with [jelly], crocodile clips, all components, salts and petri dishes. All very u npredictable.

Please specify which of the three options you are interested in. Fish (pre-built), fish (kit*) or jelly (kit*).

Custom: http://1010.co.uk/custom.pdf

Fishtin(kit): http://1010.co.uk/fishtin.pdf

Fishtin(pre-built) sample: http://1010.co.uk/fishtin1.mp3

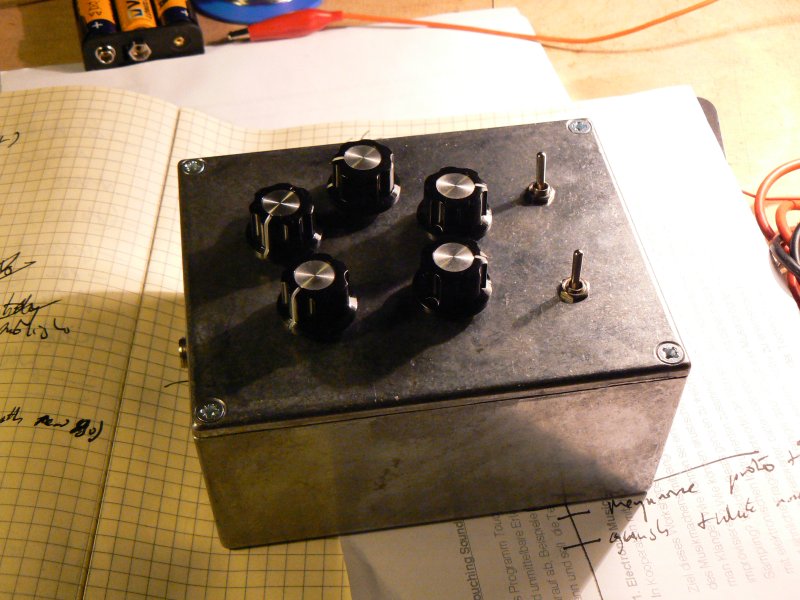

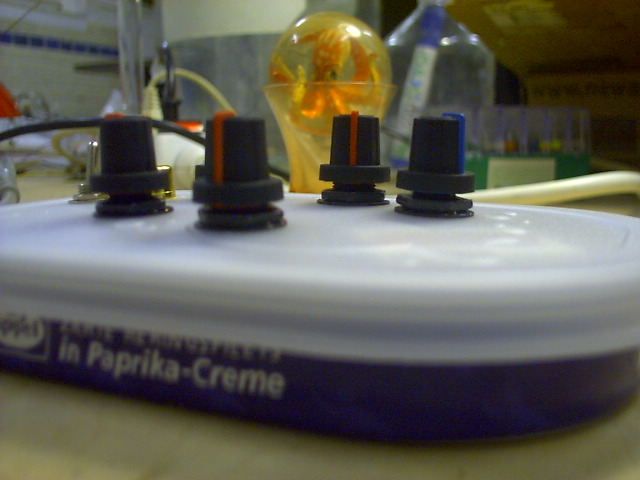

2] [new IMPROVED] expanded fish tin - analogue neural network (88 euros)

A more versatile and intriguing portable noise fish tin (same housing, five potentiometers) making use of switched filter, distortion and two neuron analogue network for processing of three oscillators through feedback. This tin is only available pre-built as a working unit (battery included).

Expanded fishtin(pre-built) sample [no edit, no processing, straight IN]: fish_expanded_new.ogg // fish_expanded_new.mp3

Portable implementation (with coil) of Leon Chua's chaotic oscillator with a range from pure sine wave to chaos and bifurcation phenomena. This chaotic generator is particularly useful for control. In custom metal housing with switch, mono full-size jack and one potentiometer/knob for tuning into chaotic region.

chua circuit

This kit is only available pre-built as a working unit (2x batteries included).

4] [new] Full scrying kit [assembled] (220 euros)

An almost complete set of scrying modules[CPU, USB, RSSI, 2.4_spectrum, GPS (inc. antenna and all connectors)]. For further details please see:

http://1010.co.uk/org/scrying.html

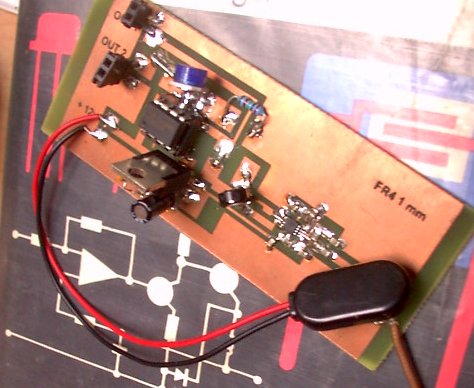

Broadband 100 MHz to 2.4 GHz radio receiver (amplitude demodulation - using only RSSI signal strength) - includes Wireless signal, using Analog devices AD8313. Broadband high frequency signals rendered audible and (to some degree) visible.

http://1010.co.uk//hifreq_sniffer_v2.pdf

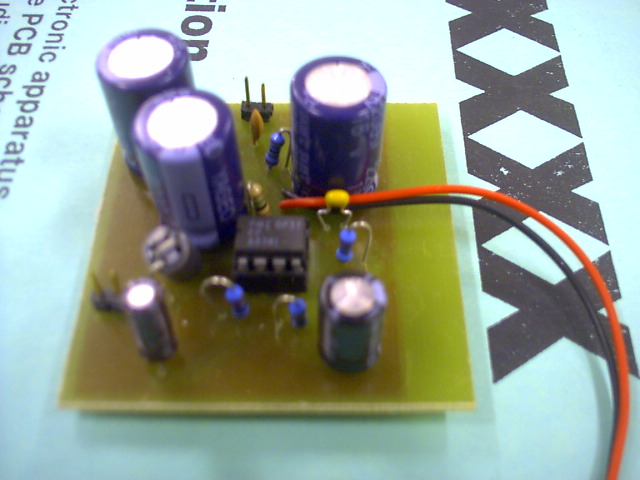

6] VLF receiver/close range schnuffler/sniffer kit (21 euros)

VLF (Very Low Frequency) receiver for use with a small wire coil (included) as very close range EM (Electromagnetic) sniffer/audio. Very good, precise audio results.

http://1010.co.uk/vlf_sniffer.pdf

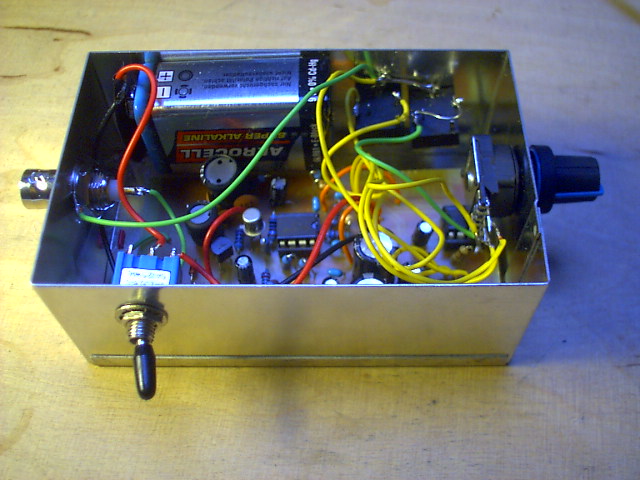

7] [new] VLF-2 natural radio receiver - ready constructed (52 euros)

New design for a ready constructed ELF/VLF natural radio receiver unit roughly based on the NASA INSPIRE VLF-3 receiver. Small unit in metal housing (without telescopic antenna) for listening and recording both natural and man-made ELF and VLF audio-frequency (between 300 Hz and 10 kHz) radio emissions. The unit has two mini-jack (3.5mm) plugs for both a recording device (mic level input) and headphones (with volume control), and a BNC socket for antenna connection (only). A (9v) battery is included. The device is only suitable for use away from power lines within the countryside or a large city park.

http://1010.co.uk/vlf.html

http://1010.co.uk/vlf.html

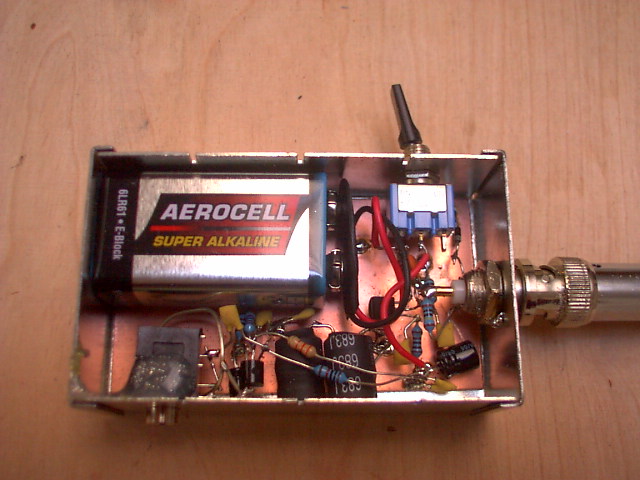

8] ELF/VLF natural radio receiver - ready constructed (28 euros)

Small, custom-made unit in metal housing (without pictured telescopic antenna) for listening and recording both natural and man-made ELF and VLF audio-frequency (between 300 Hz and 10 kHz) radio emissions. Tested in remote locations with good results during (very) distant thunderstorms, and in constructed environments for EM emissions. The unit has a mini-jack (3.5mm) plug for the recording device (mic level input) and a BNC socket for antenna connection (only). Please note that the device will not drive headphones directly and does require amplification (from a recording device such as a minidisk, DAT or HDR). The device compares very favourably with the more expensive and complex NASA INSPIRE VLF-3 receiver for the reception natural radio and EM emissions. A (9v) battery is included. The device is only suitable for use away from power lines within the countryside or a large city park. The receiver can also be ordered in a larger case with additional amplification to drive headphones (additional cost: 8 euros). Please let me know when ordering if you'd like this option.

http://1010.co.uk/elf.pdf

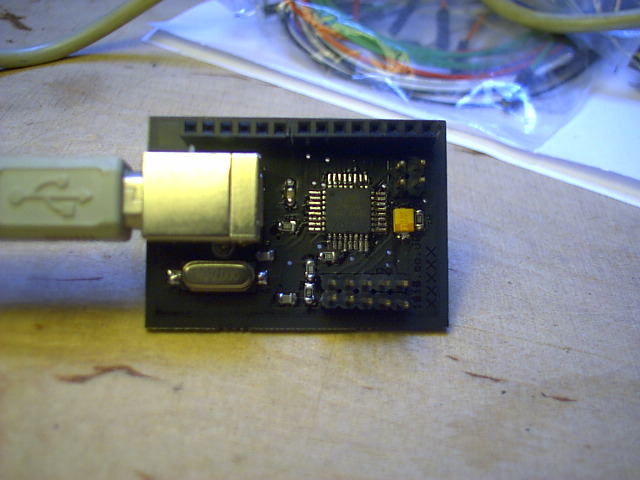

9] ATmega8 multi-purpose sensor/USB/programmer board [assembled] (18 euros)

Basic ATmega8 breakout/prototype board with voltage regulation, programming header, and I/O ports. The [assembled] board can also be supplied at no extra cost pre-programmed for a USB connection (HID) firmware providing very fast, high resolution sensor input (six analogue inputs: all ten bit) into free software such as Pure Data (PD) or Supercollider(SC). Tested on Windows, OS X and GNU/Linux. Alternatively the kit can be supplied pre-programmed as an usbasp compatible AVR in system programmer (ISP). More details at:

http://1010.co.uk/avrhid.html

http://1010.co.uk/avrprog.html

10] Hardware RNG [assembled] [random number generator] (48 euros)

Based on a transistor avalanche white noise module with additional squaring up of wave, sampling with microcontroller (ATmega8), unbiasing and serial USB interface. Can be used with free software [/dev/random] as a hardware RNG for encryption, research and PK applications. The RNG performs well under many industry-standard tests examining random number distribution.

http://1010.co.uk/RNG.pdf

11] Large custom noise synth pre-build (430 euros)

Open design (custom) - modular noise processing with a microcontroller using various algorithms such as cellular automata to drive granular synthesis/sampling and to switch the signal route through various other modules (these include distortion, LFO, VCA, switched filter, schmitt trigger neural network and switched frequency divider - potentially also sample and hold). Sources are input jacks and also an avalanche transistor noise module. The ideal housing is encased in resin and jelly, placed within a shopping bag - which doesn't travel well so we designed a new housing/instrument using glitter hot glue and plasterboard. Images and more samples to come soon.

audio:

http://plot.bek.no/~crash2005/kita.ogg

http://1010.co.uk/jelly071.ogg

http://1010.co.uk/jelly072.ogg

General instructions: http://1010.co.uk/general.pdf

11] Parts:

a] Analog Devices AD8313 - 0.1 - 2.5 GHz, 70 dB Logarithmic Detector / Controller: 12 euros each

http://www.analog.com/UploadedFiles/Data_Sheets/AD8313.pdf

b] MAX232 - SOL16: 2.00 euros

c] MAX2606 - intermediate-frequency (IF) voltage-controlled oscillators (VCO): 6.00 euros

Please contact for other surplus parts covering a large range of logic, op-amps, Schmitt triggers, digital/analogue switches, diodes, transistors, capacitors[0805 and standard thru hole], resistors[0805 and standard thru hole], LEDs, buffers, transceivers, RF chips [please enquire]
